The Impatient Programmer's Guide to Bevy and Rust: Chapter 1 - Let There Be a Player
This is chapter 1 of the rust bevy tutorial series “The Impatient Programmer’s Guide to Bevy and Rust: Build a Video Game from Scratch”. I will be going in-depth into bevy and game development in this series, also cover NPCs powered by AI Agents. Join our community to be updated on new releases on this series. Source code for this chapter is available here

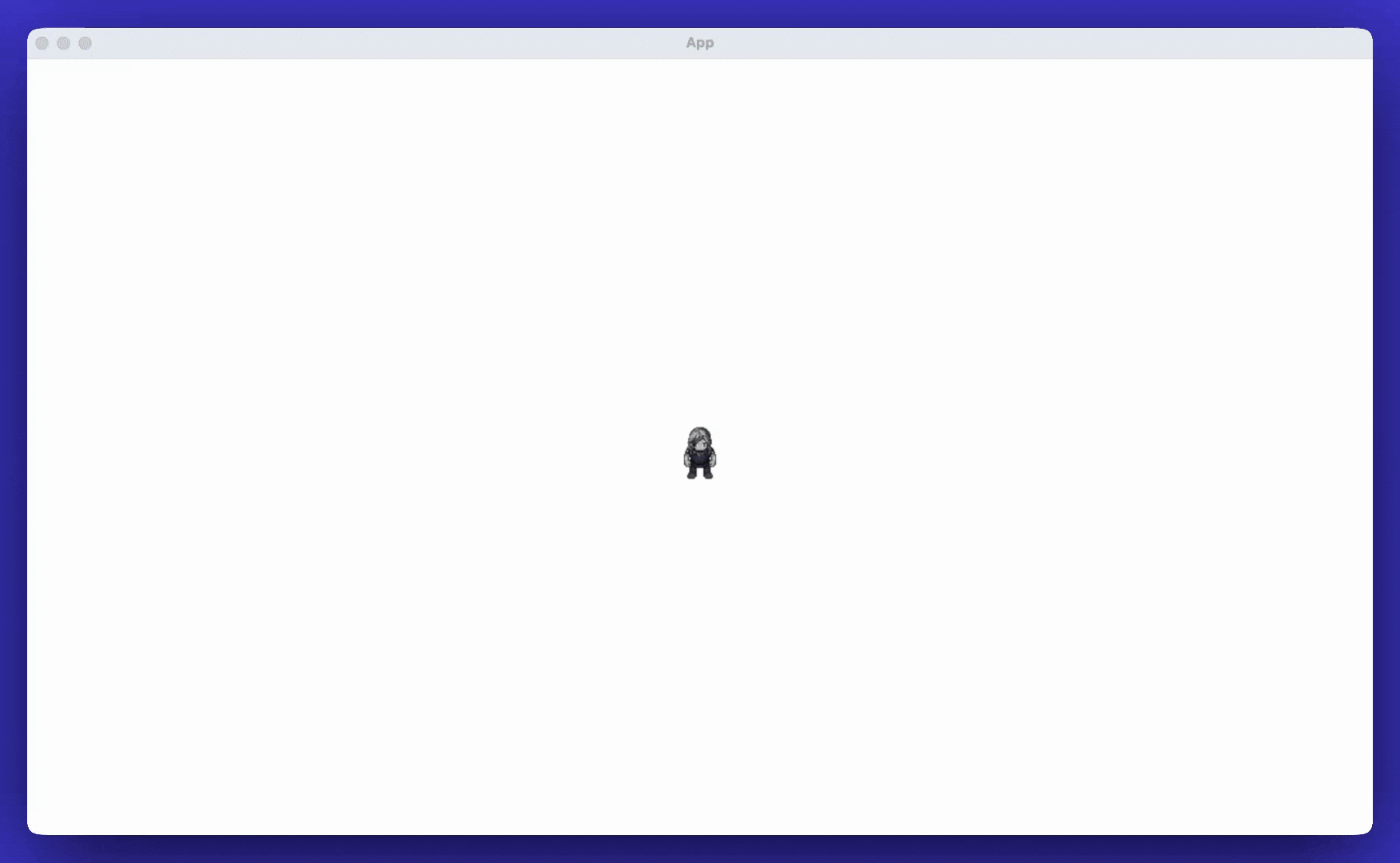

Here’s what you will be able to achieve by the end of this tutorial.
Setup Instructions
If you haven’t setup rust yet, please follow the official guide to set it up.
- Create a fresh project:
cargo new bevy_game cd bevy_game - Open
Cargo.tomland add Bevy:[dependencies] bevy = "0.16.1"
I am going to assume you have programming experience in any one language like javascript or python.
Building a Game: Systems Thinking
What do we need to build a simple game that allows player to move from keyboard input?
- We need to make our game world with the player.
- We need to monitor keyboard input and then apply it on the player.
Let’s imagine a function called setup, that gives you “commands” as an argument, and it give you spawn ability to create or spawn anything you want. Well, bevy gives you exactly that.
// Pseudo code, doesn't compile
fn setup(mut commands: Commands) {
// Create anything you want
commands.spawn()
}
What’s mut?
mut is short for mutate. In Rust we need to explicitly mention that we are planning to change this value. By default, Rust treats declared values as read only. mut tells Rust we plan to change the value.
And what’s this mut commands: Commands?
It’s from bevy library, that allows you to add entities to your game world. Rust likes explicit types, so :Commands lets the compiler know this parameter is Bevy’s command interface. Skip the hint and Rust can’t be sure what shows up, so it blocks the build.
What’s a type?
A type tells Rust what kind of value you are handling—numbers, text, timers, Bevy commands, and so on. Once the compiler knows the type, it can check that every operation you perform on it actually makes sense.
Isn’t this too much work?
It pays off almost immediately. It prevents mistakes, ex: If you try to add a string to a number, the compiler stops you before the game runs. On top of that, knowing the exact type lets Rust pack data tightly. A Vec2 is just two numbers, so Rust stores exactly two numbers—no surprise extra space—which keeps things fast when you have thousands of game entities. These helps your game to be memory efficient.

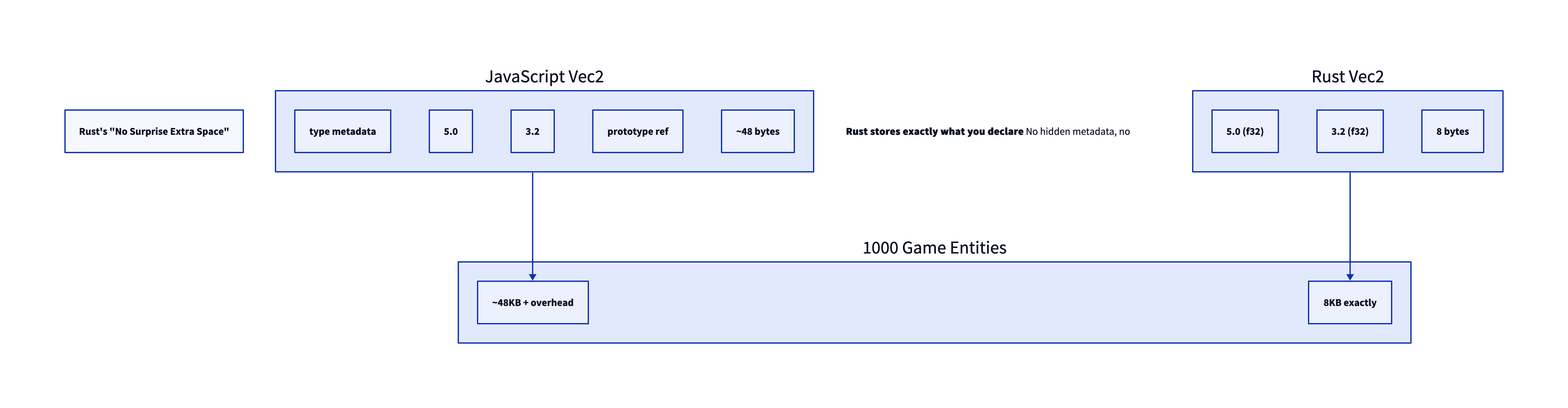

When you create a Vec2 object in JavaScript or Python, you’re not just storing two numbers. The runtime adds type metadata, property information, and prototype references - turning your simple 8-byte data structure into ~48 bytes of memory.
Rust’s type system works at compile time. When you declare a Vec2 struct with two f32 fields, that’s exactly what gets stored - just 8 bytes, no extra metadata. The compiler already knows the types, so no runtime type information is needed.
With 1000 game entities, this difference becomes dramatic:
Dynamic language: ~48KB+ (6x overhead) Rust: 8KB (just the data)
This isn’t just about memory usage - it’s about performance. Smaller, predictable memory layouts mean better CPU cache utilization, which directly translates to faster frame rates in games where you’re processing thousands of entities every frame. The compiler catches type errors before your game runs, and the tight memory packing keeps it running fast.
Adding a Camera
We need a camera because nothing shows on screen without one. The world can exist in data, but the camera decides what actually gets drawn.
//Pseudo code, don't use this yet
fn setup(mut commands: Commands) {
commands.spawn(Camera2d)
}
What’s Camera2d?
Camera2d is Bevy’s built-in 2D camera bundle. Spawn it and you get a ready-to-go view of your 2D scene.
What’s a bundle?
A bundle is just a group of components you often spawn together. For example, Bevy ships a SpriteBundle that packs position, texture, color tint, and visibility; spawning that bundle gives a sprite entity in one call.
Putting Everything Together
Now we need to handover the responsiblity to bevy from main function. Update your src/main.rs with the following code.
// Replace your main.rs with the following code.
use bevy::prelude::*;
fn main() {
App::new()
.add_plugins(DefaultPlugins)
.add_systems(Startup, setup)
.run();
}
fn setup(mut commands: Commands) {
commands.spawn(Camera2d);
}
What’s bevy::prelude?
bevy::prelude is like a starter kit, things you reach for constantly when building a game—App, Commands, components, math helpers, etc.
What’s App::new()…?
App::new() creates the game application, add_plugins(DefaultPlugins) loads rendering, input, audio, and other systems, add_systems(Startup, setup) registers our startup function, and run() hands control to Bevy’s main loop.
Why register a startup function? What does it do?
Startup systems run once before the first frame. We use them to set up cameras, players, and other things that should exist as soon as the window opens.
What’s bevy main loop?
After startup, Bevy enters its main loop: it polls input, runs your systems, updates the world, and renders a frame. That loop repeats until you quit the game.
Let’s run it
cargo run

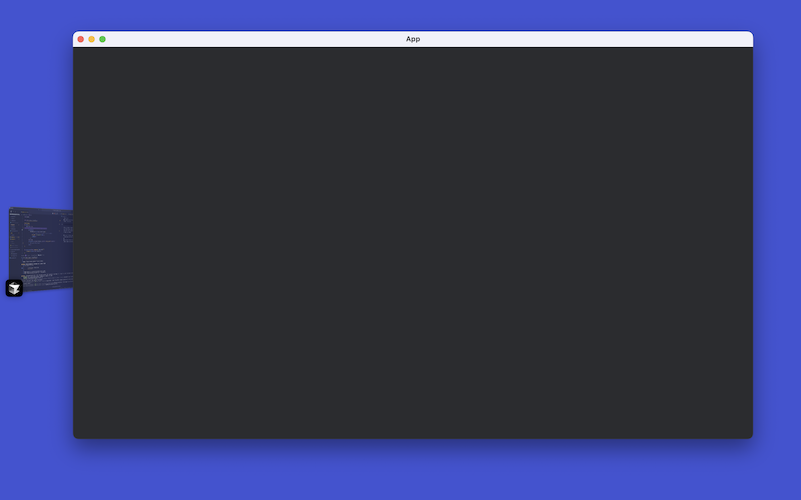

A blank screen? Yup, we have only setup the camera, now let’s add our player.
Creating the Player
// Place this before main function in main.rs
#[derive(Component)]
struct Player;
struct is one of the core building blocks of rust. It groups similar data together. Here we declare an empty Player struct so the type itself acts as a tag we can attach to the player entity. Later we can add things like player health.
Why tag?
Tag marks an entity for later lookup. Because Player is attached to only our hero, systems can ask Bevy, “give me the entity with the Player tag” and work with just that one.
What’s this #[derive(component)]?
derive tells Rust to attach the component macro code to this struct. A macro is Rust’s way of generating pre-defined template code for you. #[derive(Component)] writes the boilerplate Bevy needs so it can store and find Player entities, saving us from copying the same glue code everywhere. We’ll take a closer look at macros later in the series. This is the moment our player type becomes a component.
What’s a component, and why should the player be a component?
A component is a piece of data attached to an entity. Position, velocity, health, and even the idea of “this is the player” all live in components. By making Player a component we can query for that entity later, add more components (like health or inventory), and let Bevy’s systems pick out exactly the entities they need to update.
For now we will represent our character on screen using the “@” symbol. Modify the setup function.
// Replace existing setup function in main.rs with the following code
fn setup(mut commands: Commands) {
commands.spawn(Camera2d);
// Code Update Alert
// Append the following lines to your setup function.
commands.spawn((
Text2d::new("@"),
TextFont {
font_size: 12.0,
font: default(),
..default()
},
TextColor(Color::WHITE),
Transform::from_translation(Vec3::ZERO),
Player,
));
}
commands.spawn(( ... )) takes that tuple and treats it as a bundle of components. This single call adds the text we want to show, its font settings, the color, the position, and the Player tag that identifies the entity.
What’s a tuple?
A tuple is an ordered list of values written in parentheses. Rust keeps track of each position, so (Text2d::new("@"), TextColor(Color::WHITE)) holds two values side by side without needing to create a struct.
Whats an entity?
An entity is the unique ID Bevy uses to tie components together. By itself it holds no data, but once you attach components to it, that ID represents something in your game world.

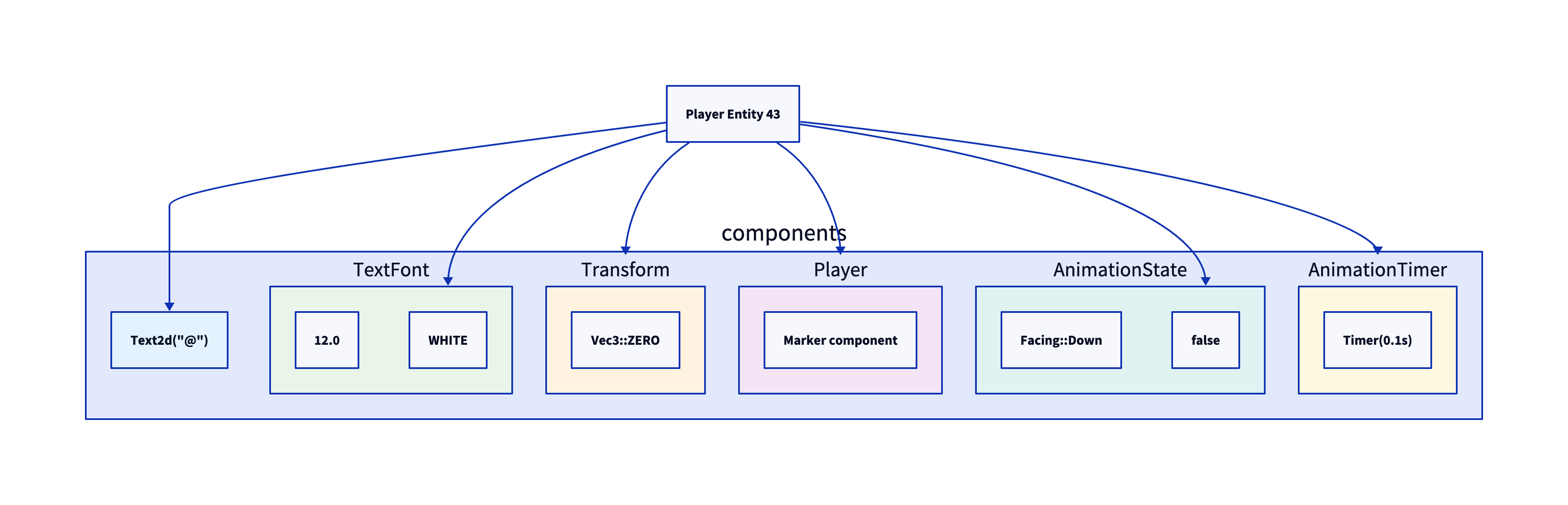

Each bundle produces a new entity with a unique ID and the listed components, which you can picture like this:
| Entity | Components it carries |
|---|---|
| #42 | Camera2d |
| #43 | Text2d("@"), TextFont, TextColor, Transform, Player |
Once the queue flushes, those entities live in the world, ready for systems to discover them by the tags (components) they carry. We will be using this later when we want to do things like moving or animating them, or making them attack enemies, etc.
Implementing Player Movement
Moving the player is simple, listen to keyboard events and apply it on the player.
// Append this code to main.rs
fn move_player(
input: Res<ButtonInput<KeyCode>>,
time: Res<Time>,
mut player_transform: Single<&mut Transform, With<Player>>,
) {
let mut direction = Vec2::ZERO;
if input.pressed(KeyCode::ArrowLeft) {
direction.x -= 1.0;
}
if input.pressed(KeyCode::ArrowRight) {
direction.x += 1.0;
}
if input.pressed(KeyCode::ArrowUp) {
direction.y += 1.0;
}
if input.pressed(KeyCode::ArrowDown) {
direction.y -= 1.0;
}
if direction != Vec2::ZERO {
let speed = 300.0; // pixels per second
let delta = direction.normalize() * speed * time.delta_secs();
player_transform.translation.x += delta.x;
player_transform.translation.y += delta.y;
}
}
Bevy looks at the parameters of your system function and automatically hands you the matching data. If you ask for Res<Time>, the engine passes in the global timer resource every frame—no manual wiring required.
What’s Res?
Res<T> is a read-only handle to shared data of type T. Resources are pieces of game-wide information that are not tied to any single entity. For example, Res<Time> gives you the game’s master clock, so every system reads the same “time since last frame” value.
Explain Single<&mut Transform, With
Single<&mut Transform, With<Player>> asks Bevy for exactly one entity that has a Transform component and also carries the Player tag. The &mut Transform part means we intend to modify that transform (Remember, we added transform component in the setup function). If more than one player existed, this extractor would complain, which is perfect for a single-hero game.
What’s Vec2::ZERO?
Vec2::ZERO is a two-dimensional vector with both values set to zero: Vec2 { x: 0.0, y: 0.0 }. We use it as the starting direction before reading keyboard input.
What’s this KeyCode::… pattern?
KeyCode::ArrowLeft, KeyCode::ArrowRight, and friends are enums (will cover enums later) that represent specific keys on the keyboard. Checking input.pressed(KeyCode::ArrowLeft) simply asks Bevy whether that key is held down during the current frame.
We ignore zero direction so the player stands still when no keys are pressed. Once we have input, normalize() converts the vector to length 1 so diagonal movement isn’t faster than straight movement. speed says how many pixels per second to move, and time.delta_secs() returns the frame time—the number of seconds since the previous frame—so multiplying them gives the distance we should travel this update. Finally we add that delta to the player’s transform translation to move the sprite on screen.
Registering the Movement System
// Update main function
fn main() {
App::new()
.add_plugins(DefaultPlugins)
.add_systems(Startup, setup)
.add_systems(Update, move_player) // Line update alert
.run();
}
What’s move_player added as Update? What’s Update?
move_player runs every frame, so we plug it into the Update schedule. Update is Bevy’s built-in stage that fires once per game loop after startup is done.
So does systems mean functions we want bevy to execute at a particular time, like initial setup or on every game loop update?
Exactly. A system is just a Rust function you hand to Bevy with a sticky note that says “run me during Startup” or “execute me on every Update,” and the engine dutifully obeys.

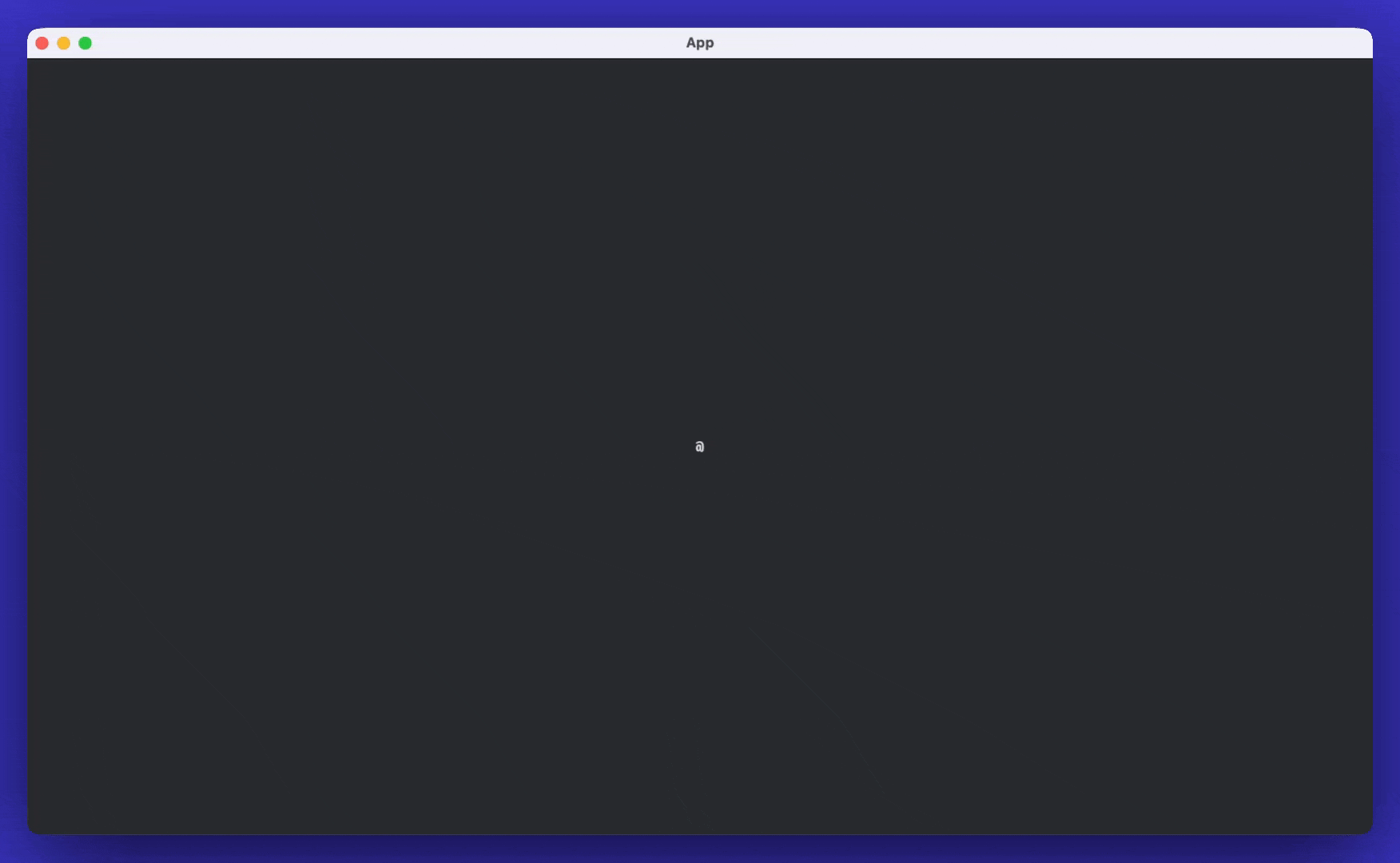

Let’s run it.
Adding Sprite Graphics
We’ll use the Universal LPC SpriteSheet Generator to give our character some personality. You can remix body parts, clothes, and colors at this link and export a full spritesheet.
For this project the spritesheet is already included in the repo. Drop the provided image files into src/assets so Bevy can find them when the game runs. You will need to create the assets directory inside the src folder.
Refactoring: Code Organization
Update your main.rs file to the following, also create another file player.rs
mod player; pulls in the player.rs module, keeping our main file slim. Splitting code like this makes it easier to grow the project without one big file doing everything.
//main.rs
use bevy::prelude::*;
mod player;
fn main() {
App::new()
.insert_resource(ClearColor(Color::WHITE)) // We have update the bg color to white
.add_plugins(
DefaultPlugins.set(AssetPlugin {
// Our assets live in `src/assets` for this project
file_path: "src/assets".into(),
..default()
}),
)
.add_systems(Startup, setup_camera)
.run();
}
fn setup_camera(mut commands: Commands) {
commands.spawn(Camera2d);
}
.insert_resource(ClearColor(Color::WHITE)) drops a global setting into the app so every frame starts with a white background.
AssetPlugin is Bevy’s loader for textures, audio, and other assets. We tweak its file_path so it looks inside src/assets, which is where our sprites live.
Building the Player Module
Add following lines of code in player.rs
// player.rs
use bevy::prelude::*;
// Atlas constants
const TILE_SIZE: u32 = 64; // 64x64 tiles
const WALK_FRAMES: usize = 9; // 9 columns per walking row
const MOVE_SPEED: f32 = 140.0; // pixels per second
const ANIM_DT: f32 = 0.1; // seconds per frame (~10 FPS)
#[derive(Component)]
struct Player; // Moved from main.rs to here
These constants give names to the numbers we reuse for the spritesheet and movement math: tile size, frames per row, walk speed, and how fast the animation advances. Moving the Player marker here keeps all player-specific types in one module.
Defining Player Directions
// Append these lines of code to player.rs
#[derive(Component, Debug, Clone, Copy, PartialEq, Eq)]
enum Facing {
Up,
Left,
Down,
Right,
}
What’s an enum?
An enum lists a handful of allowed values. Our character only ever faces four directions, so the Facing enum captures those options in one place.
Why can’t I use a struct here?
A struct would need a bunch of booleans like facing_up:true, facing_left:false, and you’d have to keep them in sync. That makes it complicated. Enum guarantees you only pick one direction.
When to decide between using enum and struct?
Use a struct when you need several fields, like a position with x and y, or player stats with health and stamina. Use an enum when you choose one option from a list, like which tool the player wields (sword, bow, wand) or which menu screen is active.
Why the purpose of adding Debug, Clone, Copy, PartialEq, Eq macros?
Debug lets us print the facing for logs, Clone and Copy make it trivial to duplicate the value, and PartialEq/Eq allow equality checks when we compare directions.
Why can’t I copy through simple assignment, why should I add these macros?
By default Rust moves values instead of copying them, so the compiler makes you opt in. Deriving Copy (and Clone as a helper) says “it’s cheap, go ahead and duplicate it.” PartialEq and Eq let us compare two facings directly, which is how we detect when the player changes direction.
What do you mean by rust moves values, instead of copying?
When you assign most values in Rust, the old variable stops owning it or in other words dies. Adding Copy keeps both variables valid.
Why does the old variable stop owning or die when assigned?
Rust enforces that each value has a single owner so memory can be freed safely. We’ll unpack the ownership rules and borrowing in later chapters.
Animation System Components
// Append these lines of code to player.rs
#[derive(Component, Deref, DerefMut)]
struct AnimationTimer(Timer);
#[derive(Component)]
struct AnimationState {
facing: Facing,
moving: bool,
was_moving: bool,
}
AnimationTimer wraps a Bevy Timer so each player entity knows when to advance to the next animation frame. Each tick represents one slice of time; once the timer hits its interval we move to the next sprite in the sheet.
What’s Deref, DerefMut macros doing?
Deref lets our wrapper pretend to be the inner Timer when we read from it, and DerefMut does the same for writes. That means we can just call timer.tick(time.delta()) on AnimationTimer without manually pulling out the inner value first.
So we are renaming the Timer to AnimationTimer?
We’re wrapping the timer, not renaming it. Think of AnimationTimer as a little box that holds a Timer, plus a label that says “this one belongs to the player animation.” When we spawn a player we create a fresh Timer and tuck it into that box, so each player could have its own timer if we needed multiple heroes.
So it’s an instance of AnimationTime?
Yes—AnimationTimer is a tuple struct that contains a Timer. We build one when we spawn the player so each entity can carry its own timer data. This pattern shows up whenever you want to attach extra meaning to an existing type without writing a brand-new API.
AnimationState remembers which way the player points, whether they are moving, and whether they just started or stopped. Systems read this to choose animation rows and reset frames when movement changes.
Spawning the Player
// Append these lines of code to player.rs
fn spawn_player(
mut commands: Commands,
asset_server: Res<AssetServer>,
mut atlas_layouts: ResMut<Assets<TextureAtlasLayout>>,
) {
// Load the spritesheet and build a grid layout: 64x64 tiles, 9 columns, 12 rows
let texture = asset_server.load("male_spritesheet.png");
let layout = atlas_layouts.add(TextureAtlasLayout::from_grid(
UVec2::splat(TILE_SIZE),
WALK_FRAMES as u32, // columns used for walking frames
12, // at least 12 rows available
None,
None,
));
// Start facing down (towards user), idle on first frame of that row
let facing = Facing::Down;
let start_index = atlas_index_for(facing, 0);
commands.spawn((
Sprite::from_atlas_image(
texture,
TextureAtlas {
layout,
index: start_index,
},
),
Transform::from_translation(Vec3::ZERO),
Player,
AnimationState { facing, moving: false, was_moving: false },
AnimationTimer(Timer::from_seconds(ANIM_DT, TimerMode::Repeating)),
));
}
We load the spritesheet through the AssetServer, create a texture atlas layout so Bevy knows the grid, and pick the starting frame for a hero facing down. Then we spawn an entity with the sprite, transform at the origin, our marker components, and the timer that will drive animation.
AnimationState { facing, moving: false, was_moving: false } sets the starting direction and flags that the character is idle right now and was idle last frame. AnimationTimer(Timer::from_seconds(ANIM_DT, TimerMode::Repeating)) creates a repeating stopwatch that fires every ANIM_DT seconds to advance the spritesheet.
Movement System
// Append these lines of code to player.rs
fn move_player(
input: Res<ButtonInput<KeyCode>>,
time: Res<Time>,
mut player: Query<(&mut Transform, &mut AnimationState), With<Player>>,
) {
let Ok((mut transform, mut anim)) = player.single_mut() else {
return;
};
let mut direction = Vec2::ZERO;
if input.pressed(KeyCode::ArrowLeft) {
direction.x -= 1.0;
}
if input.pressed(KeyCode::ArrowRight) {
direction.x += 1.0;
}
if input.pressed(KeyCode::ArrowUp) {
direction.y += 1.0;
}
if input.pressed(KeyCode::ArrowDown) {
direction.y -= 1.0;
}
if direction != Vec2::ZERO {
let delta = direction.normalize() * MOVE_SPEED * time.delta_secs();
transform.translation.x += delta.x;
transform.translation.y += delta.y;
anim.moving = true;
// Update facing based on dominant direction
if direction.x.abs() > direction.y.abs() {
anim.facing = if direction.x > 0.0 { Facing::Right } else { Facing::Left };
} else {
anim.facing = if direction.y > 0.0 { Facing::Up } else { Facing::Down };
}
} else {
anim.moving = false;
}
}
The query asks Bevy for the single entity tagged Player, giving us mutable access to its Transform and AnimationState. We build a direction vector from the pressed keys, normalize it so diagonal input isn’t faster, and move the player by speed × frame time. The facing logic compares horizontal vs vertical strength to decide which way the sprite should look. We record whether the player is moving now so later systems can detect when motion starts or stops.
Animation Implementation
// Append these lines of code to player.rs
fn animate_player(
time: Res<Time>,
mut query: Query<(&mut AnimationState, &mut AnimationTimer, &mut Sprite), With<Player>>,
) {
let Ok((mut anim, mut timer, mut sprite)) = query.single_mut() else {
return;
};
let atlas = match sprite.texture_atlas.as_mut() {
Some(a) => a,
None => return,
};
// Compute the target row and current position in the atlas (column/row within the 9-column row)
let target_row = row_zero_based(anim.facing);
let mut current_col = atlas.index % WALK_FRAMES;
let mut current_row = atlas.index / WALK_FRAMES;
// If the facing changed (or we weren't on a walking row), snap to the first frame of the target row
if current_row != target_row {
atlas.index = row_start_index(anim.facing);
current_col = 0;
current_row = target_row;
timer.reset();
}
let just_started = anim.moving && !anim.was_moving;
let just_stopped = !anim.moving && anim.was_moving;
if anim.moving {
if just_started {
// On tap or movement start, immediately advance one frame for visible feedback
let row_start = row_start_index(anim.facing);
let next_col = (current_col + 1) % WALK_FRAMES;
atlas.index = row_start + next_col;
// Restart the timer so the next advance uses a full interval
timer.reset();
} else {
// Continuous movement: advance based on timer cadence
timer.tick(time.delta());
if timer.just_finished() {
let row_start = row_start_index(anim.facing);
let next_col = (current_col + 1) % WALK_FRAMES;
atlas.index = row_start + next_col;
}
}
} else if just_stopped {
// Not moving: keep current frame to avoid snap. Reset timer on transition to idle.
timer.reset();
}
// Update previous movement state
anim.was_moving = anim.moving;
}
// Returns the starting atlas index for the given facing row
fn row_start_index(facing: Facing) -> usize {
row_zero_based(facing) * WALK_FRAMES
}
fn atlas_index_for(facing: Facing, frame_in_row: usize) -> usize {
row_start_index(facing) + frame_in_row.min(WALK_FRAMES - 1)
}
fn row_zero_based(facing: Facing) -> usize {
match facing {
Facing::Up => 8,
Facing::Left => 9,
Facing::Down => 10,
Facing::Right => 11,
}
}
let Ok((mut anim, mut timer, mut sprite)) = query.single_mut() else { return; }; both checks the result and names the pieces we need. If the query succeeds, the code binds anim, timer, and sprite so we can use them later. If it fails (no player, or more than one), we hit the else branch and exit immediately. Rust uses the Result type for this: Ok means “query returned exactly one result,” Err means “something about that query didn’t match.”
After that we match on an Option, which is Rust’s “maybe there is a value” type. Some(atlas) means the texture atlas exists and we can tweak it; None means it hasn’t loaded yet, so we skip and let the next frame try again. It’s the same pattern you’d use when checking a map or cache: only use the value when the lookup returns something.
animate_player pulls the animation state, timer, and sprite handle for the player. It figures out which row of the atlas matches the current facing, snaps to that row when direction changes, and uses the timer to step through columns at a steady pace. When movement stops we reset the timer so the animation rests on the last frame shown. The helper functions map a facing to the correct row and frame index so the math stays readable.
Creating the Player Plugin
// Append these lines of code to player.rs
pub struct PlayerPlugin;
impl Plugin for PlayerPlugin {
fn build(&self, app: &mut App) {
app.add_systems(Startup, spawn_player)
.add_systems(Update, (move_player, animate_player));
}
}
PlayerPlugin is our “player module” in plug form. In Bevy, a plugin is just a struct that knows how to register systems, resources, and assets. By implementing Plugin for PlayerPlugin, we give Bevy a checklist: whenever this plugin is added to the app, run the code inside to set up everything the player feature needs. This keeps main.rs from becoming a tangle of player-specific calls.
The build method is the checklist. Bevy passes us a mutable App, and we bolt on the systems we care about. spawn_player is scheduled in Startup so the sprite appears as soon as the game launches. move_player and animate_player go into the Update schedule so they execute every frame—handling input and animation in lockstep. With everything declared here, dropping PlayerPlugin into App::new() automatically wires up the entire player flow.
So this build function is something in built structure, which I have to write?
Yes. The Plugin trait says “any plugin must provide a build(&self, app: &mut App) function.” We implement that trait, so Rust expects us to supply the body. Bevy calls this method when it loads the plugin, which is why we add all our systems inside it.
What’s a trait?
A trait is a contract describing what methods a type must provide. Bevy’s Plugin trait says “give me a build function so I can register your systems.” By implementing that trait for PlayerPlugin, we hook into Bevy’s startup process and inject our own setup code. Traits let different types share behavior, PlayerPlugin behaves like any other Bevy plugin, but it installs our player-specific systems.
Final Integration
// Update the main function in main.rs
use crate::player::PlayerPlugin;
fn main() {
App::new()
.insert_resource(ClearColor(Color::WHITE))
.add_plugins(
DefaultPlugins.set(AssetPlugin {
file_path: "src/assets".into(),
..default()
}),
)
.add_systems(Startup, setup_camera)
.add_plugins(PlayerPlugin) // Update this line
.run();
}
Why write use crate::player::PlayerPlugin;?
main.rs sits at the root of the crate, so the player module lives directly under that root. The crate:: prefix says “start looking from the top of this package,” then drill down into the player module to grab PlayerPlugin. It is the clearest way to point at a module that was declared with mod player; at the root level.
So when could I just write player::PlayerPlugin?
Only from inside a module that can already see player as a sibling. For example, code inside src/player/mod.rs or a child of player can refer to PlayerPlugin without the crate:: prefix because the path is relative to that module. When you are in main.rsor any other file at the crate rootcrate:: makes the intent explicit and keeps paths consistent even as the project grows.
Let’s run it.
cargo run
